DemirDöküm

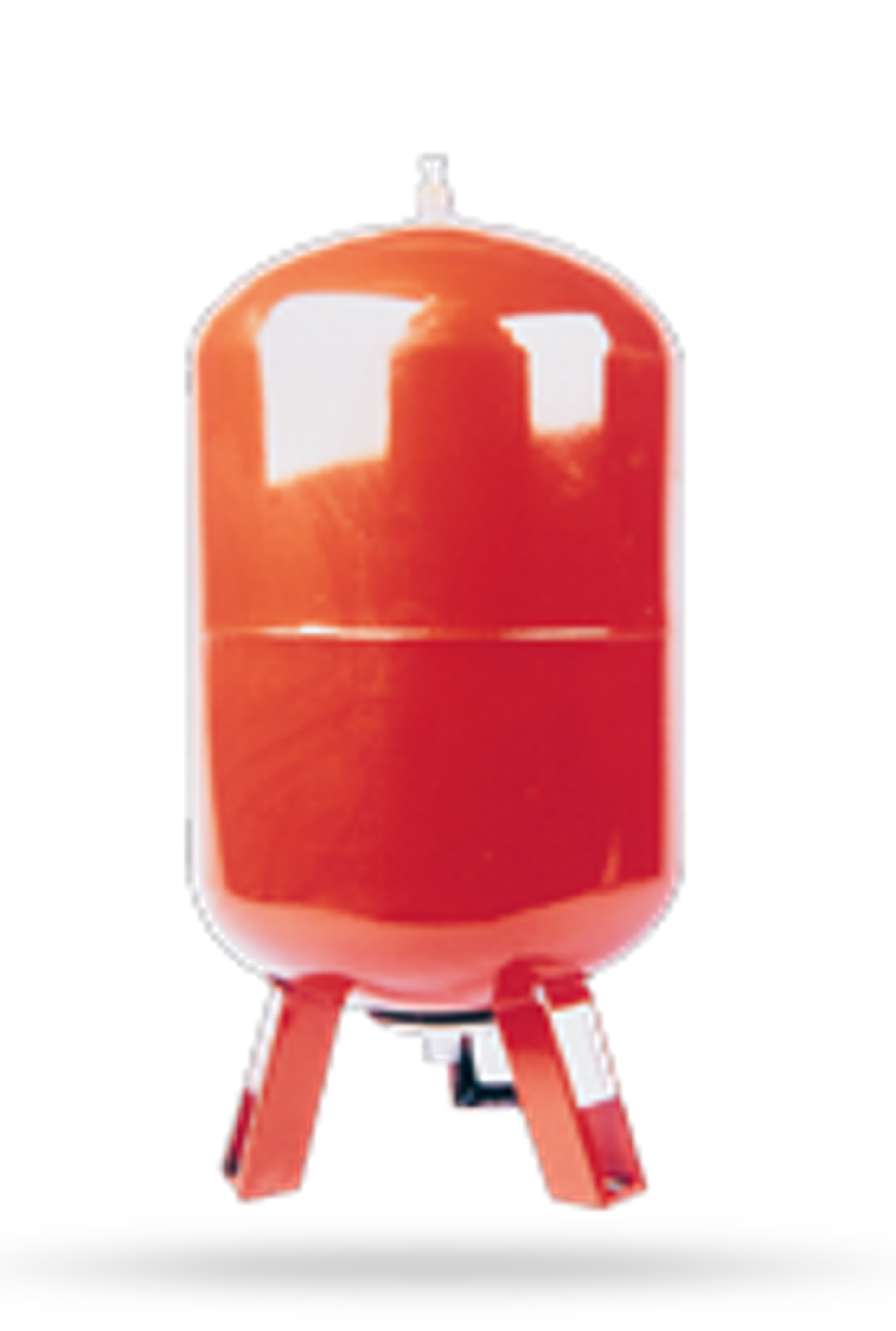

Closed Expansion Tank
Superior Features
Hygienic Structure
Thanks to changeable hygienic membrane, does not cause odor in water.
System protection property
Structure absorbing pressure fluctuations within the installment protects the installation. Prevents the system from keeping air in itself and removes heating problem regarding the radiators. Besides, protects the floor standing boiler from corrosion and makes it long-lasting.
Electrostatic powder dye
Products are coated with electrostatic powder dye in a way that would remove the corrosion impact.
Specifications
Specifications
| DGT 50 -10 | DGT 60 -10 | DGT 80 - 10 | DGT 100 - 10 | DGT 150 - 10 | DGT 200 - 10 | DGT 300 - 10 | DGT 500 - 10 | DGT 750 - 10 | DGT 900 - 10 | DGT 1000 - 10 | DGT 1500 - 10 | DGT 2000 - 10 | DGT 3000 - 10 | DGT 50 - 16 | DGT 60 - 16 | DGT 80 - 16 | DGT 100 - 16 | DGT 150 - 16 | DGT 200 - 16 | DGT 300 - 16 | DGT 500 - 16 | DGT 750 - 16 | DGT 900 - 16 | DGT 1000 - 16 | DGT 1500 - 16 | DGT 2000 - 16 | DGT 3000 - 16 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Expansion Tank Properties | ||||||||||||||||||||||||||||
| Capacitylt | 50 | 60 | 80 | 100 | 150 | 200 | 300 | 500 | 750 | 900 | 1000 | 1500 | 2000 | 3.000 | 50 | 60 | 80 | 100 | 150 | 200 | 300 | 500 | 750 | 900 | 1.000 | 1.500 | 2.000 | 3.000 |
| Operating pressurebar | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Preliminary Gas Pressurebar | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Diametermm | 380 | 380 | 460 | 460 | 460 | 590 | 650 | 750 | 800 | 800 | 800 | 960 | 1100 | 2.500 | 380 | 380 | 460 | 460 | 460 | 590 | 750 | 800 | 800 | 800 | 800 | 960 | 1.100 | 2.500 |
| Heightmm | 720 | 780 | 840 | 935 | 1.100 | 1.090 | 1.210 | 1.520 | 1.770 | 2.000 | 2.150 | 2130 | 2.500 | 2.500 | 720 | 780 | 840 | 935 | 1.100 | 1.090 | 1.520 | 2.000 | 1.770 | 2.000 | 2.150 | 2.130 | 2.500 | 2.500 |
| ConnectionR | 1 | 1 | 1 | 1 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 2 | 2 | 2 | 2 | DN65 | DN65 | 1 | 1 | 1 | 1 | 1 1/4 | 1 1/4 | 1 1/4 | 2 | 2 | 2 | 2 | 2 | DN65 | DN65 |
| with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | with Manometer | |||||||
