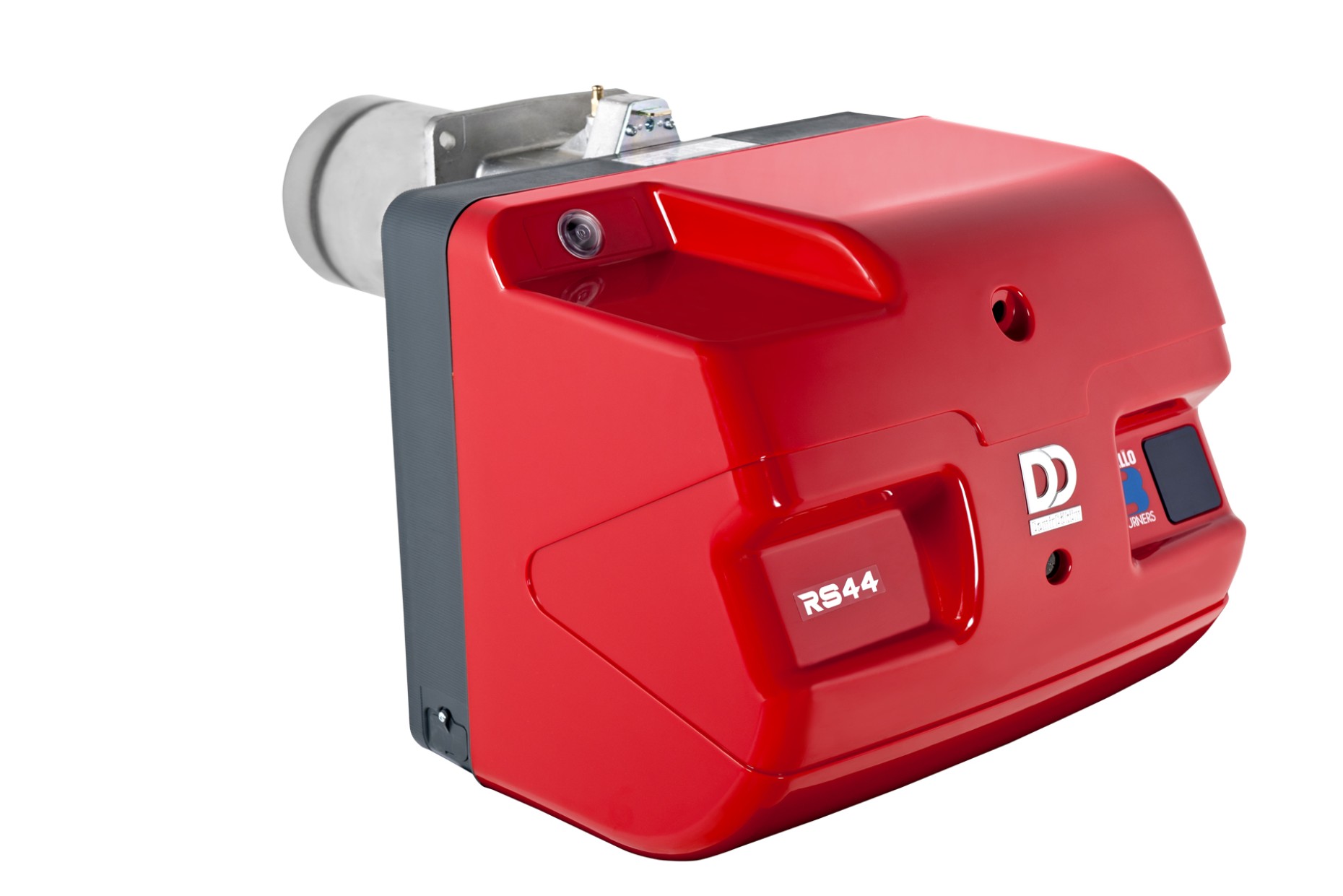

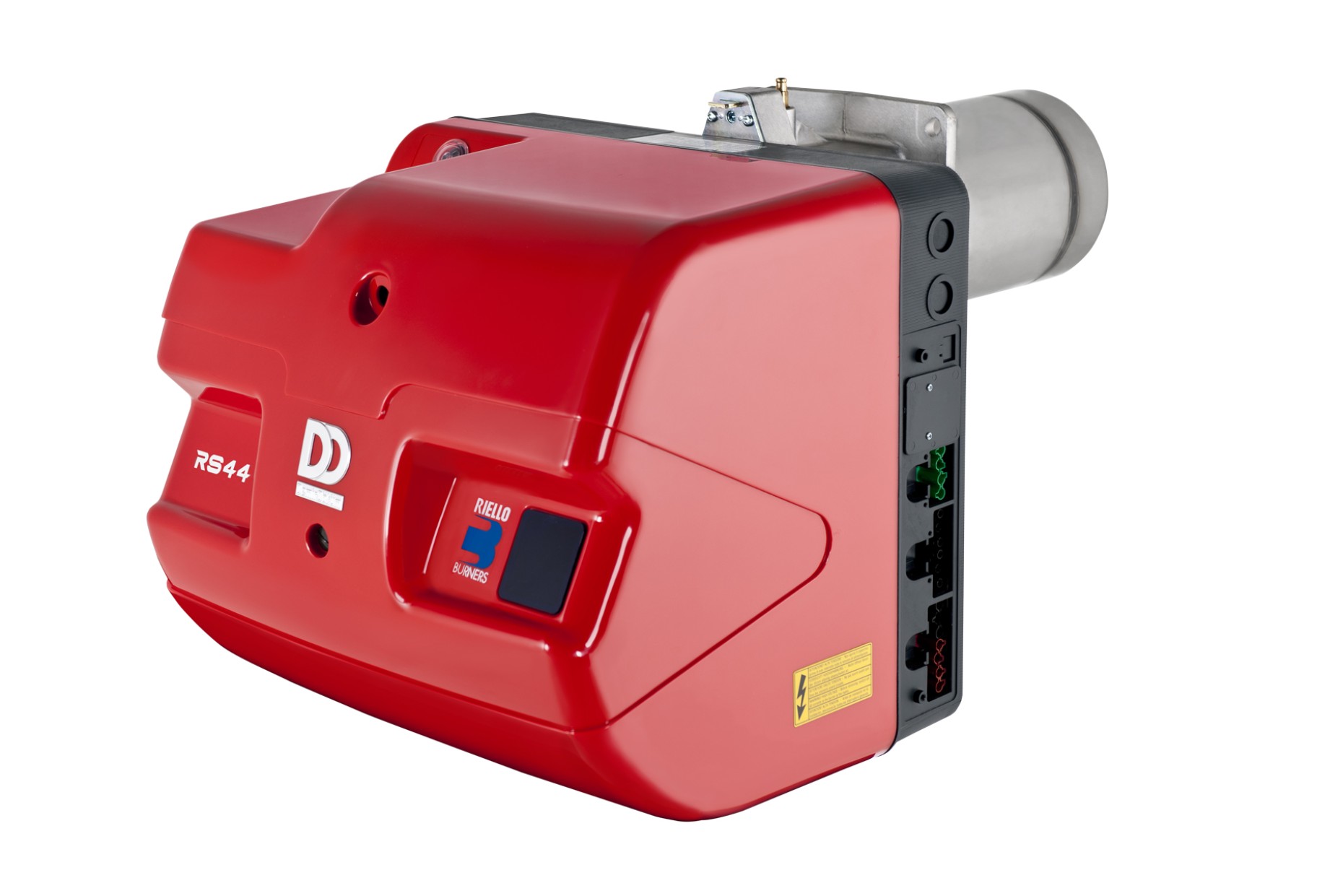

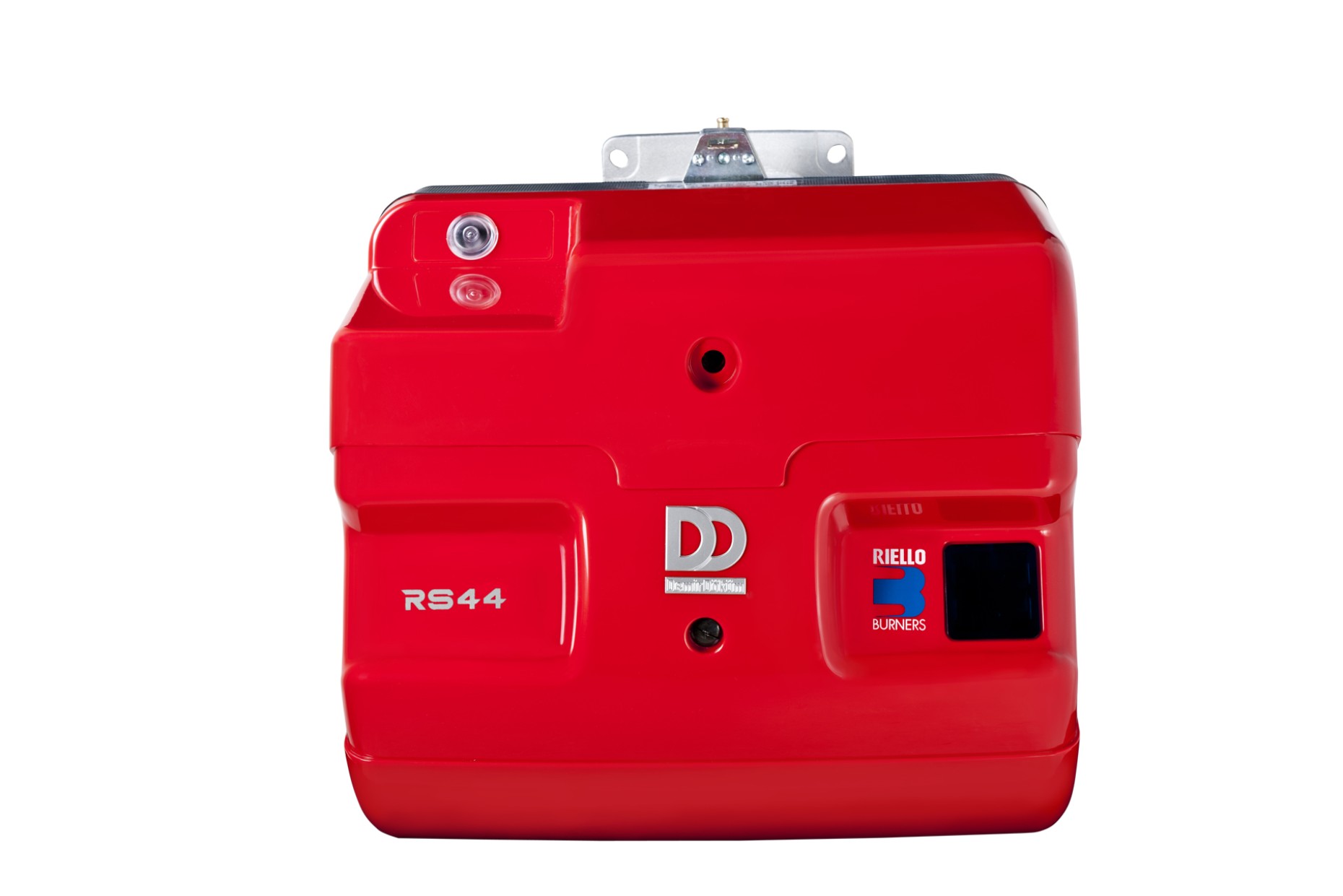

Superior Features
Maximum Fuel Saving
Burner models with single grade, double grade, and proportional modulation mix air and fuel in optimum proportions and provide fuel saving.
Low Sound Level
Thanks to their special design, DemirDöküm burners operate at a very low sound level without requiring burner silencers.
Easy Maintenance
All components on burners provide reach to combustion head without disassembling the burner thanks to the sliding mechanism during service.
Specifications
Specifications
| RS34 | RS44 | RS50 | RS64 | RS70 | RS100 | RS130 | RS190 | |
|---|---|---|---|---|---|---|---|---|
| General Properties | ||||||||
| Double grade operation | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operation with Modulation | No | No | No | No | No | No | No | No |
| Fuel | Natural Gas | Natural Gas | Natural Gas | Natural Gas | Natural Gas | Natural Gas | Natural Gas | Natural Gas |
| Capacity | ||||||||
| Capacity 2nd gradekW | 130 - 190 | 200 - 550 | 290 - 581 | 400 - 850 | 415 - 814 | 698 - 1.163 | 930 - 1512 | 1.279 - 2.290 |
| Capacity 2nd gradeMcal/h | 130 - 390 | 172 - 473 | 249 - 500 | 345 - 730 | 400 - 700 | 600 - 1.000 | 800 - 1.300 | 1.100 - 1.900 |
| Capacity 1st gradekW | 70 | 100 | 116 | 150 | 192 | 232 | 372 | 470 |
| Capacity 1st gradeMcal/h | 60 | 86 | 100 | 130 | 165 | 200 | 320 | 405 |
| Efficiency | ||||||||
| Net thermal valueMcal/Nm3 | 8,2 - 7 | 8,2 - 7 | 7,4 - 8,6 | 8,13 - 7 | 8,6 - 7,4 | 8,6 - 7,4 | 8,6 - 7,4 | 8,6 - 7,4 |
| Net thermal valuekWh/Nm3 | 9,45 - 8,13 | 9,45 - 8,13 | 10 - 8,6 | 9,45 - 8,2 | 10 - 8,6 | 10 - 8,6 | 10 - 8,6 | 10 - 8,6 |
| Absolute densitykg/Nm3 | 0,71 - 0,78 | 0,71 - 0,78 | 0,71 - 0,78 | 0,71 - 0,78 | 0,71 - 0,78 | 0,71 - 0,78 | 0,71 - 0,78 | 0,71 - 0,78 |
| Max. CapacityNm3/h | 41 - 48 | 58 - 67,6 | 58 - 68 | 90 | 81 - 94 | 116 - 135 | 151 - 175 | 229 - 266 |
| Pressure at max. efficiencymbar | 15,4 - 22,8 | 15,9 - 22,7 | 7,2 - 10,6 | 10,7 - 16,1 | 10 - 15,2 | 9,3 - 13,7 | 8,6 - 12,7 | |
| Electrical Properties | ||||||||
| Electric sourceV | 230 - 400 neutralized ~+ / - 10 % | 230 - 400 neutralized ~+ / - 10 % | 230 - 400 neutralized ~+ / - 10 % | 230 - 400 neutralized ~+ / - 10 % | 230 - 400 neutralized ~+ / - 10 % | 230 - 400 neutralized ~+ / - 10 % | 230 - 400 neutralized ~+ / - 10 % | 230 - 400 neutralized ~+ / - 10 % |
| Electric sourceHz | 50/60 Single phase | 50/60 Single phase | 50 - three phase | 50 - three phase | 50 - three phase | 50 - three phase | 50 - three phase | 50 - three phase |
| Electric motorrpm | 2.800 | 2.800 | 2.800 | 2.800 | 2.800 | 2.800 | 2.800 | 2.800 |
| Electric motorW | 300 | 420 | 750 | 1.100 | 1.100 | 1.500 | 2.200 | 4.500 |
| Electric motorV | 220 - 240 | 220 - 240 - 380 - 415 | 220 - 240 - 380 - 415 | 220 - 240 - 380 - 415 | 220 - 240 - 380 - 415 | 220 - 240 - 380 - 415 | 220 - 240 - 380 - 415 | 220 - 240 - 380 - 415 |
| Electric motorA | 15 | 17 | 22 | |||||
| Motor kondansatörüµF/V | 3,2 | 4,8 - 2,8 | 5,9 - 3,4 | 8,8 - 5,1 | 15,8 - 9,1 | |||
| Ignition transformatorV1 -V2 | 230 V - 1 x 15 kV | 230 V - 1 x 15 kV | 230 V - 1 x 15 kV | 230 V - 1 x 15 kV | 230-1 x 8 kW | 230-1 x 8 kW | 230-1 x 8 kW | 230-1 x 8 kW |
| Ignition transformatorI1 -I2 | 1 A - 25 mA | 1 A - 25 mA | 1 A - 25 mA | 1 A - 25 mA | 1 A - 20 mA | 1 A - 20 mA | 1 A - 20 mA | 1 A - 20 mA |
| Electric power consumptionW maks | 600 | 700 | 750 | 1500 | 1.400 | 1.800 | 2.600 | 5.500 |
| Electric protection level | IP 40 | IP 40 | IP 40 | IP 40 | IP 44 | IP 44 | IP 44 | IP 44 |
| Other | ||||||||
| Operation | Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none) | Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none) | Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none) | Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none) | Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none) | Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none) | Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none) | Interrupted (Minimum 1 stops within every 24 hours) , Two-Grade (Low or high flame) and single-grade (all - none) |
| Standard Implementation | Boilers: Water, Vapor, Hot Oil | Boilers: Water, Vapor, Hot Oil | Boilers: Water, Vapor, Hot Oil | Boilers: Water, Vapor, Hot Oil | Boilers: Water, Vapor, Hot Oil | Boilers: Water, Vapor, Hot Oil | Boilers: Water, Vapor, Hot Oil | Boilers: Water, Vapor, Hot Oil |
| Environment temperature°C | 0 - 40 | 0 - 40 | 0 - 40 | 0 - 40 | 0 - 40 | 0 - 40 | 0 - 40 | 0 - 40 |
| Combustion air temperature°C maks | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Sound leveldBA | 70 | 72 | 72 | 76 | 75 | 77 | 78,5 | 83,1 |
