Superior Features
25 mm Pitch
DemirDöküm Panel Plus radiators are the panel radiators with the highest thermal power in Turkey with their first and only 25 mm pitch.
Long-Lasting
DemirDöküm panel radiators are coated with Zirconium and Cataphoresis dye. Corrosion resistance is 2-4 times higher in comparison to the radiators in which wet dye+iron phosphate is used.
400-3000 mm Range Length Choices
Length choices between the range of 400-3000 mm are provided with Panel Plus radiators

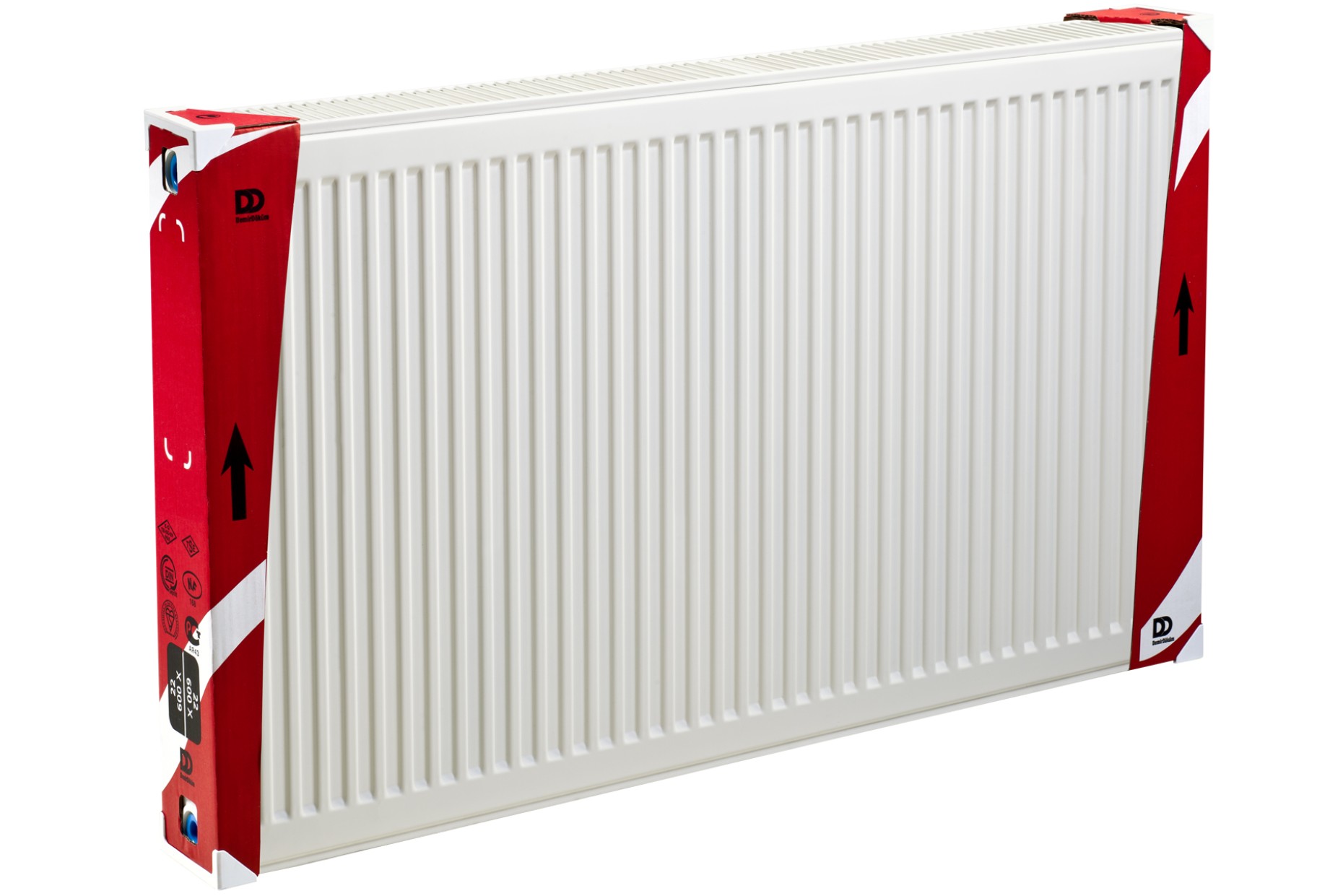

Modern Package System with Corner Reinforcement
DemirDöküm Panel Plus radiators provide easy handling with modern package system and potential damages that may arise during the handling of the product are prevented.
High Operational Pressure
DemirDöküm Panel Plus radiators, tested under 13 bars, enable high operational pressures.
Advanced Technology
With unrivalled robot welding and dye technology and superior quality, DemirDöküm panel radiators are the first radiators launched with 10 years warranty in Turkey.
World’s Choice
All radiators have certificates such as TSE (Turkey), BSI (England), DIN (Germany), NF (France), and CE, and their quality is approved by the entire World. Has ISO 9000 certificate with BSI and TSE approval.
Superior Quality and Guarantee
All radiators have certificates such as TSE (Turkey), BSI (England), DIN (Germany) and CE and their quality is approved by the entire World. Has LRQI 9001, 14001 and OHSAS 18001 certificates approval.
Specifications
Specifications
| Panel Plus | |
|---|---|
| General Properties | |
| Type | 22 |
| Pitch Distancemm | 25 |
| Dye | Zirconium |
| Test Pressurebar | 13 |
| Warranty | 10 Years |
| Capacity | |
| 300 mm (75 °C - 65 °C)watt | 1.052 |
| 400 mm (75 °C - 65 °C)watt | 1.315 |
| 500 mm (75 °C - 65 °C)watt | 1.563 |
| 600 mm (75 °C - 65 °C)watt | 1.798 |
| 900 mm (75 °C - 65 °C)watt | 2.448 |
| 300 mm (75 °C - 65 °C)kcal/h | 905 |
| 400 mm (75 °C - 65 °C)kcal/h | 1.131 |
| 500 mm (75 °C - 65 °C)kcal/h | 1.344 |
| 600 mm (75 °C - 65 °C)kcal/h | 1.546 |
| 900 mm (75 °C - 65 °C)kcal/h | 2.105 |
| Dimensions | |
| Heightmm | 300-400-500-600-900 |
| Length ( Min. - Max.)mm | 400 - 3000 |
| Depthmm | 105 |
| Weight ( For 600 mm - 1 m)kgkg | 33,7 |
| Specific Features | |
| Water Volumelt | 5,6 |
| Compact Valve Option | Get information from the authorized dealer regarding type and dimensions. |
| Compact Cap Option | Get information from the authorized dealer regarding type and dimensions. |
| Floor-Mounting Option | Yes |
