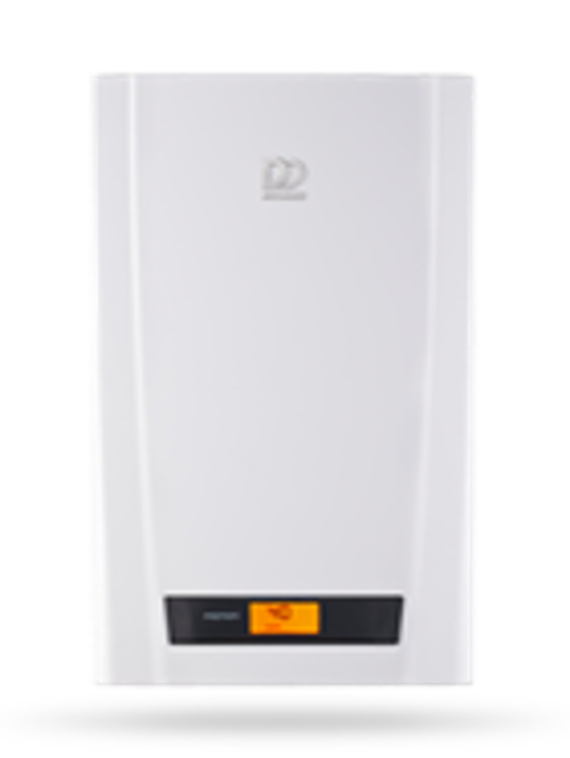

DemirDöküm Nitron
Conventional Wall Hung Boiler
Superior Features
93% Efficiency
Atron wall hung boilers operate economically with 93% efficiency. As a result of economic operation, they have less natural gas consumption.
3-Star Efficiency Class
It is in 3-star efficiency class according to 92/42/EEC standards imposing high efficiency obligation in maximum and minimum operation.
Multifunctional LCD Screen
Instant capacity usage, ECO button, break down warning system, wall hung boiler capacity, and gas type can be monitored on LCD screen.
Standard Digital Program Timer
Programmability on every day of week at any time period with standard digital program timer
Self Adaptation System
Automatic fan speed adjustment according to hermetic chimney length and conditions and safe operation
Fan modulation
Fan speed is automatically adjusted according to the temperature requirement of wall hung boiler. This way, while high efficiency is provided in Nitron wall hung boilers, sound levels are considerably low.
Specifications
Specifications
HK F 224 | HK F 230 | |
---|---|---|
General Properties | ||
Device Type | Conventional | Conventional |
Chimney Type | Hermetic | Hermetic |
Analog Manometer | No | No |
Fuel Type Tracking on LCD | Yes | Yes |
EMC Filter | Yes | Yes |
CapacitykW | 24 | 30 |
Heat Exchanger Type | Double | Double |
Efficiency% | 93 | 93 |
Efficiency Class (92/42/EEC) | 3 Stars | 3 Stars |
Smart Heating System | No | No |
Fan Modulation | Yes | Yes |
Self Adaptation System | Yes | Yes |
Adjustable Heating Capacity | Yes | Yes |
Flame Modulation | Yes | Yes |
Program Timer | Yes | Yes |
Microfast Hot Water Unit | No | No |
NTC Sensor Structure | Double | Double |
Economy/Comfort Modu | Yes | Yes |
Freezing Safety | Yes | Yes |
Pump Blocking Safety | Yes | Yes |
Button Type | Buttoned | Buttoned |
Availability for Floor Heating | Available | Available |
Capacity Usage Tracking on LCD | Yes | Yes |
Capacity-Efficiency | ||
Minimum Nominal Thermal PowerkW | 7,7 | 8,7 |
Maximum Nominal Thermal PowerkW | 23,5 | 30,2 |
Minimum Nominal Thermal Powerkcal/h | 7.310 | 8.340 |
Maximum Nominal Thermal Powerkcal/h | 20.900 | 26.400 |
Efficiency% | 93 | 93 |
Dimensions | ||
Heightmm | 720 | 720 |
Widthmm | 405 | 430 |
Depthmm | 330 | 330 |
Net Weightkg | 35 | 36 |
Electrical Properties | ||
Electric feed | 230 V-50Hz | 230 V-50Hz |
Electrical Protection Class | IPX4D | IPX4D |
Maximum Electrical PowerW | 150 | 150 |
Heating Features | ||
Installation temperature adjustment range°C | 30-80 | 30-80 |
Expansion tank capacitylt | 7 | 7 |
Maximum installation capacity(at 75°C average water temperature)lt | 140 | 140 |
Maximum operation pressurebar | 3 | 3 |
Service Water Circuit Properties | ||
Temperature adjustment range°C | 35-64 | 35-64 |
Minimum water flow ratelt/dk | 2,5 | 2,5 |
Specific water flow rate (at 30 °C temperature difference)lt/dk | 11,8 | 14,5 |
Minimum water pressurebar | 0,25 | 0,25 |
Maximum water pressurebar | 8 | 8 |
Waste Gas Properties | ||
Waste gas output diametermm | 60-100 | 60-100 |
Chimney pipe length provided with the devicecm | 75 | 75 |
